PVC Geomembrane | Geotextile

“Dr.Millars” brand PVC Geomembrane

PVC Geomembranes are relatively thin sheets of flexible polymeric materials that are nature impermeable thus providing barrier to movement of water and fulids or materials of solution nature

“Dr.Millars” brand PVC Geomembrane used for water proofing/ seepage control of concrete structures, Building roofs, foundations, Basements, tunnels, underpasses and sealing of expansion joints and for lining of reservoirs, water bodies, canals etc. for seepage control.

These are PVC sheets, normally of 1.5 MM & 2.00 MM, produced in India as per a special formulation provided by our technical experts which meet the latest RVNL, IRCON, NHAI & also as per BIS (IS:15909:2020) specifications.

We have taken a turnkey based project i.e. Supply & Installation of PVC Geomembrane. We have complete range of Water Proofing.

Salient Features

Products are 100% made in India under the prestigious “Make in India” program which replaces 100% imported products & dependency on foreign companies.
Possibility to produce & supply PVC membranes as per tailor made specifications of large infra projects.
Quick & on time delivery as goods are produced by a reputed PVC processing factory located near New Delhi under supervision from Dr. Millar’s engineers.
Geo Textiles as per tailor made requirement is got produced from OEM manufacturers & all installation accessories is sourcing from reputed & approved suppliers along with test certificate.
Test reports from reputed labs like M/s. Spectro Labs confirming all properties meeting international ASTM & DIN Standards.

“Dr.Millars” PVC Geomembrane is 100% Indian under Make in India program

This meets the specification as per international standards (ASTM & EN) as well as IS: 15909:2010 (BIS specification for PVC Geomembrane lining).

AREAS OF APPLICATION

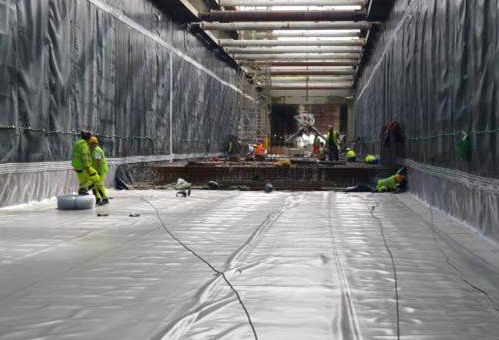

Water Proofing

Water Proofing of Building Roofs and Foundations, Underground Concrete Structures like Basement Foundations etc.

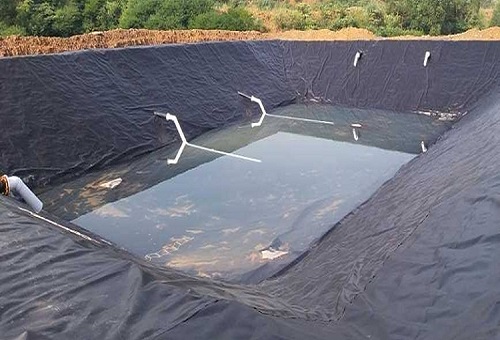

Waste Containment

Waste Containment for Industrial Effluents & Solid Waste Management to prevent contamination of Ground Water Aquifer.

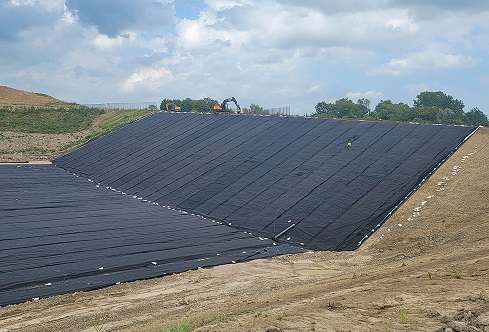

Landfill Capping

Landfill Capping to prevent fluid flow into the land fill and to trap and properly vent the gases.

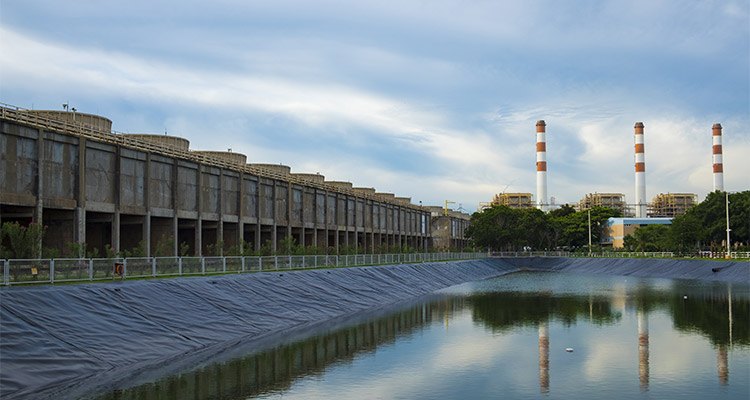

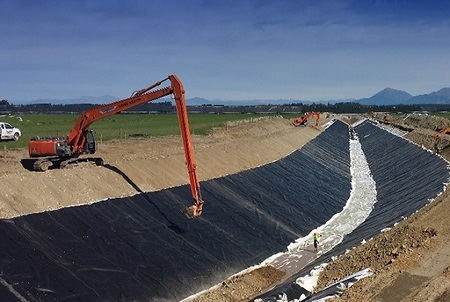

Lining of Water Bodies

Lining of Lakes/Reservoirs/Water Bodies for 100% Seepage Control including aquaculture reservoirs for Fish Farming.

The special features of PVC Geomembrane are that it confirms to uneven ground surface enhancing life & can be easily repaired.

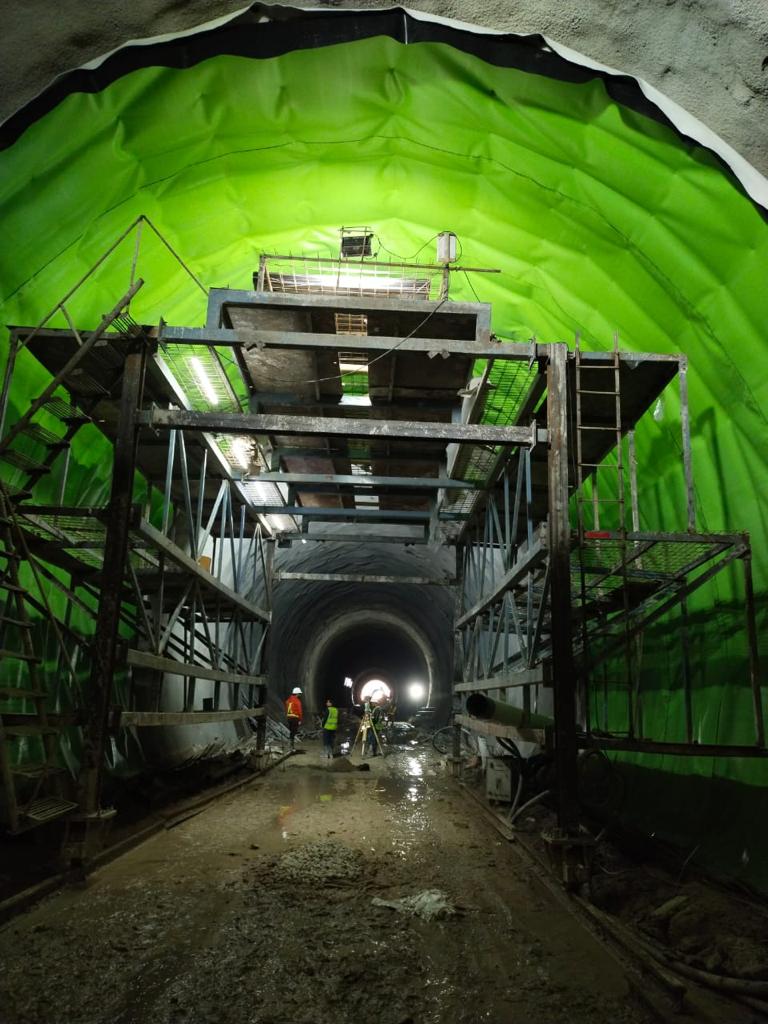

This is most suitable product for tunnels as the PVC membranes have excellent flexibility & elongation which will not fail even in case of mild earthquakes. The PVC Geomembrane supplied by us meet to all standard quality parameters and can be a safe and economical option for water proofing applications.

Send Enquiry

INSTALLATION PROCEDURE (LAKE / RESERVOIRS / WATER BODIES)

The Liner is available in 2 meter width and 30 meter length.
Large Panels can be fabricated into panels up to 30 meter wide and 100 meter long to minimize the field seaming.
The above panels are joined with the help of thermo welding machine as side dimensions. The welding is very strong and 100% sag proof.
The laying and fxing of PVC Liner is done on a dry and compacted Surface. We have an experienced and skilld team to carry out the job of laying and fixing at site.
Installation by Anchorng method. In this method a trench is constructed arround the reservoirs and liner is anchored in the trench by back filling the trench as shown in the following sketch.
